Layout via Optimisation

Since I mentioned linear programming in the last entry I've managed to wrap my head around it enough to come up with a possible solution for my layout issues.


Example layout problem:


If I just consider the horizontal coordinates, the following known values and relationships describe this layout:

B centre = A centre
B width = 40
C width = B width / 2
C left = B right + 5
D width = 100
D right = B right

Want to know:

Left and right of every box.


Now a recursive layout algorithm has trouble with this. It can't determine the offset of B without knowing the size of A, but the size of A depends on the offset of B. You need to do at least a couple of size and layout passes, and even then I'm having trouble getting it working (and I don't have the perserverance to keep trying).

It seems at first that solving the simultaneous equations would work. But in general this isn't useful because there is nothing to stop negative widths being created -- which isn't terribly useful. And determining enough additional terms to constrain the solution (e.g. that D left = A left) requires calculation itself.

Changing this to an optimisation problem allows it to be defined without the need for it to be fully specified. And constraints keep the values pointing the right way.

After a bit of fiddling about, I think I've come up with a basic systematic procedure which should allow the determination of the results using the simplex algorithm. It may not be the most optimal setup, but it appears to be relatively robust so far.

  1. Trivially define the objective function in terms of the sum of every left and right X coordinate.
  2. Define width relationships - the known knowns, or the known unknowns.
  3. Define container constraints - every child is fully inside its parent. Unless the parent size is defined explicitly, in which case do not add any implicit relationship.
  4. Define layout constraints.

Applied to the problem above, first, trivially define the object function in terms of the left and right bounds of every box:

p = ar + al + bl + br + cl + cr + dl + dr

This is a minimisation problem in p.

Next define the widths:

br - bl = 40
dr - dl = 100
ar - al >= 0
cr - cl >= 0 (since we know this is B width / 2, we could just use 20 too)

Define the container relationship -- everything inside A must be inside A:

br - ar <= 0 cr - ar <= 0 dr - ar <= 0 al - cl <= 0 al - bl <= 0 al - dl <= 0 Everything is relative to A, so set A's left edge to 0, so it doesn't float up to meet the highest other boundary. al = 0 Now define the layout relationships. B centre = A centre bl + (br - bl)/2 = (ar - al) / 2 or bl/2 + br/2 - ar/2 + al/2 = 0 C width = B width / 2 cr - cl = (br - bl)/2 or br/2 - bl/2 - cr + cl = 0 C left = B right + 5 cl = br + 5 or cl - br = 5 D right = B right dr = br dr - br = 0 And running the simplex method over this system generates everything I need directly: Optimal Solution: p = 650; ar = 160, al = 0, bl = 60, br = 100, cl = 105, cr = 125, dl = 0, dr = 100 (calculated using http://www.zweigmedia.com/RealWorld/simplex.html) Nice. And just as a test, lets shrink D to be smaller than B, say 30.

Optimal Solution: p = 440; ar = 90, al = 0, bl = 25, br = 65, cl = 70, cr = 90, dl = 35, dr = 65

Still works.

It should be able to calculate both dimensions and deeper structures simultaneously. This will allow relationships across dimensions, e.g. A width = B height * factor + offset.

One thing the recursive layout routine handled ok was affine transforms (after a lot of mucking about mind you). I guess this should handle them too if I get the coordinate space correct. Relative position calculations need to be in parent space, but the layout calculations need to be in global space.

Now I just have to work out how to calculate those parameters from expression trees, and find out if a solver will run fast enough. Actually I'm pretty confident of the performance question, even a trivial implementation I wrote for work did thousands of rows and columns in a few hundred ms.

Monday 23 March 2009

Z**D

Well I've been hacking on, of all things, a 2D structured diagram drawing application.

It came out of a lack of satisfaction with pretty well any GUI application I've tried. They look good on paper but when you try to do things with them you find all sorts of nasty limitations. One of the biggest problems they have is creating lots of objects of the same kind with different settings (think, uml classes). On the other hand, there are purely text or language based formats, which are good for editing lots of items quickly, and you can control layout very well, but they have steep learning curves, and making small tweaks to attain visual perfection is very time consuming. I haven't had the chance to use many CLI applications -- perhaps GNUPlot is the closest. They provide graphical output but no chance for graphical input. Like GNUPlot, many are focused on scientific users too.

So I want to experiment with a combined CLI, GUI, and ``active source'' user interface. I guess it might end up being a bit ambitious, but it'll give me something to keep me off the streets for a while.

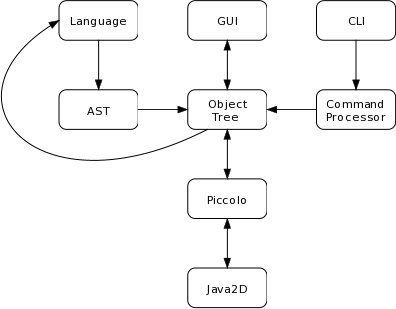

(not the real intended structure, but a quick diagram I whipped up to test some code)


Some of the ideas so far:
  • CLI, GUI, and programming language are all fully first-class interactive data input options.
  • CLI is an old-school CAD-like interface, where data can be input numerically.
  • A ``live'' text editor where edits are reflected in the display at or near real-time.
  • A typical pick'n'place GUI as well, at least for creating objects and adjusting layout.
  • Item references in CLI or Editor or GUI are highlighted in the alternative input views.
  • Declarative language allows flexibility, yet still allows direct GUI relationships.
  • Language more human oriented than parser oriented.
  • Custom graphical objects defined in declarative language, including object-like features.
  • Custom graphical objects also defined in Java classes.
  • Flexible layout mechanisms based on anchor points and vector arithmetic. Somehow available from GUI too.
  • Heirarchical objects and grouping.
  • Cascading styles using same syntax as language.
I'm more interested in the HCI factors than producing a real product, but I guess I'll see how it goes. And how long I keep interested.

I've done some work on the language parser, and the language itself is an interesting problem, and there's plenty of room to experiment. Do I go for minimalistic syntax, and put more of the semantics into the execution of the AST, or do I wrap up more of the language in reserved words? Do I use special symbols (e.g. ~ for a curve, "foo" for a label), or stick to English keywords (curve x ..., label "blah" ...)? GUI-modifications-to-source operations --- essentially graphical refactoring tools --- will probably be quite some work too.

And I have some layout code that mostly works. Although I've already hit some issues with containers which must automatically size to their contents. Because of the arithmetic and relationship based layout system there is the potential for complex relationships that are difficult, expensive, or impossible to calculate using recursive layout procedures and delayed arithmetic. Maybe linear programming will come to the rescue, if I can get my head around it - should be able to just calculate all the layout at once. But ... It will need some symbolic expression refactoring, which doesn't sound too fun.
